ULSTRASONIC SCANNER
ULSTRASONIC SCANNER
ULSTRASONIC SCANNER
Ultrasonic volume scanning system and bin sorter for sawmill short log infeed
Ask for more
More details
Technical data

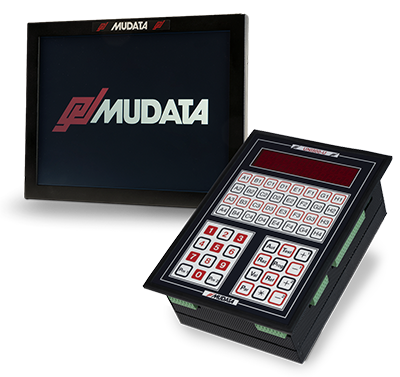

Ultrasonic volume scanning system for short logs is composed of a UNI800-U, 3 ultrasonic sensors CEL950, a rotary encoder, a 15" PC touchscreen and a MUDATA scanning and sorting software
Global or per log statistics
Actual volume and commercial volume
Selection of the volume calculation formula
Sorting and editing by criterion, by sub-criterion, by bin, by valid bin and reject bin, by short log and long log, by sorting memory, by essence, by class and by team
Management of downtime
Edition of product lists
Accumulation by minute, hour, day and team
Automatic sending of statistics by e-mail
Accuracy ± 10mm on horizontal and vertical diameters
(log must touch the V-belt conveyor for an accurate measurement of the vertical diameter)
Recommended model for global volume at sawmill's log infeed
+
POS607
+ 2 interfacing cards with 8 relays INT107 for air-cylinder fence
+
2D SCANNER
For linear carriage
+
UNI152
For edger (2-axis)
